Cable Pulling Winches UP100 kN
HYDRAULIC PULLER - MAX PULL 100 kN
Description
Hydraulic puller 100 kN. Fit to pull one rope in laying underground transmission cables and fibre optics wires.
CONFIGURATION
- Multi-grooved steel capstans
- Control panel equipped with built-in electronic instrument DEG 4.0 – 7’’ large graphic colour display and a USB port
- Metallic cover
- Electronic instrument by-pass
- Maintenance-free load cell reading system
- Safety negative hydraulic brake
- Oil cooling system
- Rope guiding pulley
- Built-in reel-winder with automatic rope-winder
- Chassis with tandem rigid axle, adjustable towing bar and manual parking brake fit for towing at low speed on the job site
- Four adjustable mechanical stabilisers
- Anchoring and lifting points
OPTIONAL DEVICES
- Chassis with tandem damped axle, towing bar adjustable in height, pneumatic braking system, ABS system and lights fit for towing the machine on road at max. speed 80 km/h. EC-Type approved set. Homologation – Registration Excluded
- Compact remote control by cable. Cable length = 10 m
- Radio remote control. Complete with display and 5 m long back-up cable
- Printer with accessories
- Device for pipe refurbishing. Fit for setting the max. pull force which allows to maintain the force set even at speed 0 m/min
- Motorised rubber crawler system. Complete with front hydraulic plough and radio-remote control for the crawler system and the machine pulling operations
- OLS – OMAC Link System. GPS geolocation + remote monitoring and diagnostics

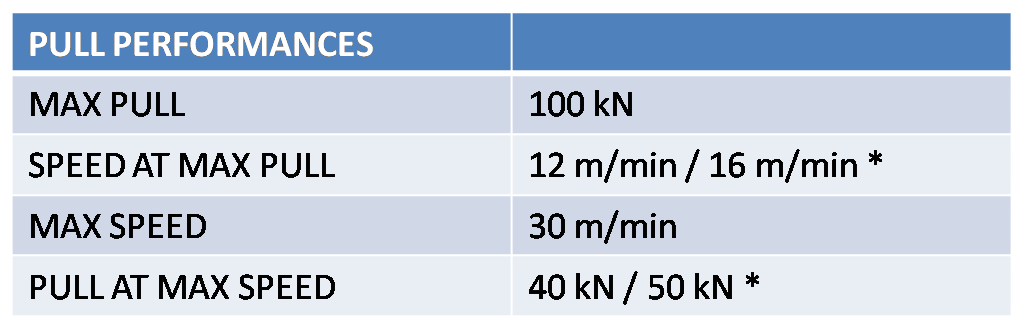

Performances of the machine without optional devices, at sea level and temperature 20°C.
Dimensions and weights are without optional devices. All data may change without notice. Images and drawings are indicative only.
* According to the EC directive 97/68/CE with subsequent amendments and additions.
